Introduction

60ktyz 50-0 Type AC synchronous motor Wire Connection

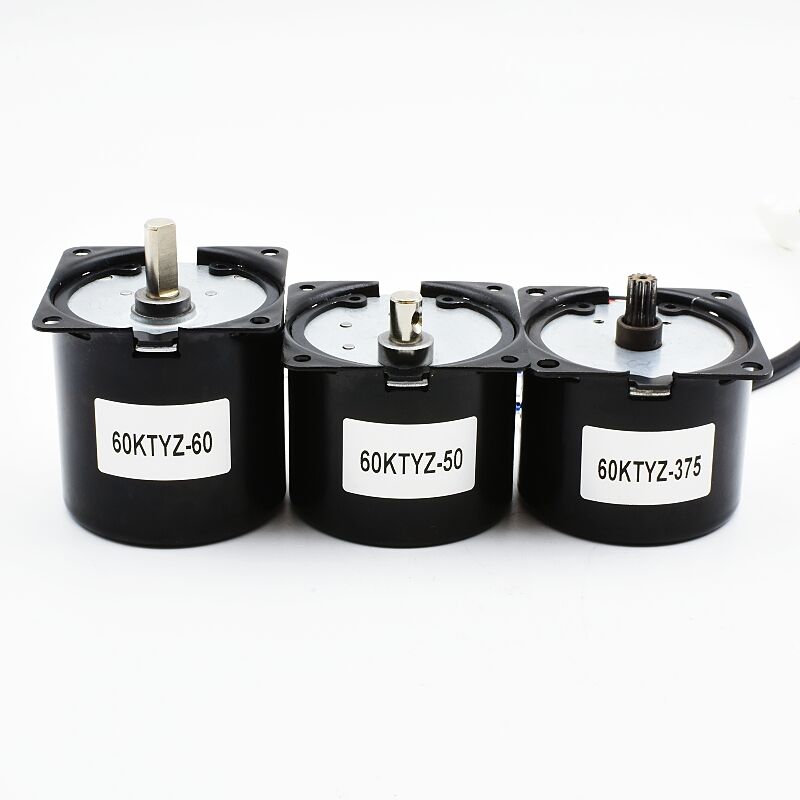

Model 60KTYZ-50
Rated Frequency 50/60 Hz 60ktyz 50-1
Temperature Rise ≤75℃
Applicable Voltage Rate Volt ±10%
Directions CW/CCW
Insulation Class Class E
60ktyz 50-2Dimensions(mm)
Electrical Technical Data
Rated Voltage VAC 24 100 110 120 220 230
Starting Voltage VAC ≤21 ≤90 ≤96 ≤102 ≤187 ≤196
Rated Frequency Hz 50、60、50/60
Input Current S1 mA ≤400 ≤100 ≤80 ≤45
S2 ≤900 ≤200 ≤180 ≤90
Input Power S1 W ≤10
S2 ≤20
Capacitor S1 μF ≤22 ≤1.5 ≤1.2 ≤0.27
S2 25-100 1.8-5.5 1.5-4.5 0.33-1.2
Mechanical Technical Data
Output Speed (50/60Hz) RPM 2.5/3 5/6 7.5/9 10/12 15/18 20/24 25/30 30/36 40/48 50/60 60/72 80/96 100/120
Torque S1 N.cm 500 250 160 120 90 65 55 45 30 25 20 15 10
S2 650 330 220 160 120 85 70 60 45 35 30 20 15
S2 Duty Cycle The duty cycle (S2) involves a continuous operation time ranging from 4 to 15 minutes, where the shorter the input power, the longer the operation time, and conversely, the higher the input power, the shorter the operation time.
Torque Unit Conversion: 1N.m≈10.2kgf.cm≈141.6oz.in≈8.85lb.in
If you need other parameters, please contact customer service.
